BINI swivel joints designed for application in earthmoving equipment are customarily used in:
- mini excavators
- caterpillar tread excavators
- wheeled excavators
- graders
- spider excavators
- hybrid excavators
Application
Earthmoving
APPLICATIONS
OUR PRODUCTS FOR EARTHMOVING EQUIPMENT
TECHNICAL SPECIFICATIONS
Swivel joints and electrical slip rings designed for earthmoving equipment feature:
Compact dimensions
High pressures
High number of passages
Durability
Viable in dirty, muddy environments
All swivel joints can be supplied with electrical slip rings.
DISCOVER OUR PRODUCTS FOR EARTHMOVING EQUIPMENT
HiPOmaxi SERIES
HiPO Series
ROTATION SPEED
0 – 30 rpm
OPERATING TEMPERATURE
-40 to 60°C (-40 to 140°F)
MAXIMUM NUMBER OF CONTACTS
150
CURRENT LOAD
10 mA – 600 A
OPERATING VOLTAGE
1000 V AC / 700 V DC
HiPOmini SERIES
HiPO Series
ROTATION SPEED
0 – 30 rpm
OPERATING TEMPERATURE
-40 to 60°C (-40 to 140°F)
MAXIMUM NUMBER OF CONTACTS
30
CURRENT LOAD
10 mA – 25 A
OPERATING VOLTAGE
700 V AC / 700 V DC
HiPO SERIES
HiPO Series
ROTATION SPEED
0 – 30 rpm
OPERATING TEMPERATURE
-40 to 60°C (-40 to 140°F)
MAXIMUM NUMBER OF CONTACTS
50
CURRENT LOAD
10 mA – 300 A
OPERATING VOLTAGE
700 V AC / 700 V DC
CE SERIES
Electrical Slip Rings
ROTATION SPEED
0-20 rpm
OPERATING TEMPERATURE
-20 to 60°C (-4 to 140°F)
NUMBER OF CONTACTS
1 to 80
CURRENT LOAD
0.1 mA to 50 A
OPERATING VOLTAGE
680 V AC / 220 V DC

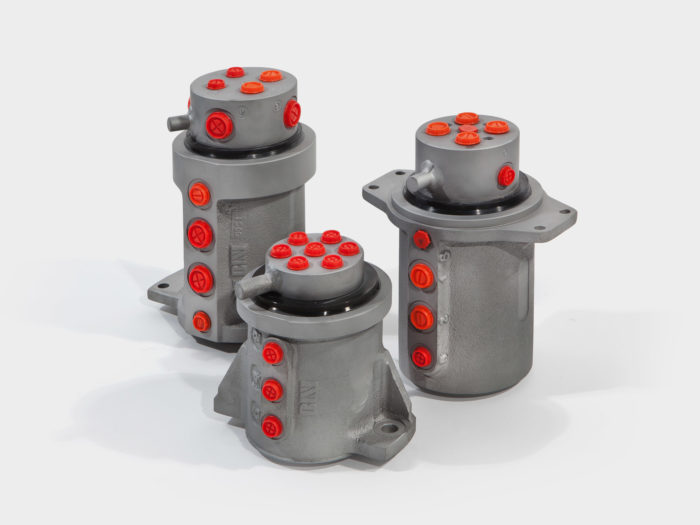

DM SERIES
Hydraulic Swivel Joints
PORTS
7 to 11
FLUIDS
hydraulic fluid, air
MAXIMUM PRESSURE
420 bar
ROTATION SPEED
0-12 rpm
OPERATING TEMPERATURE
-30 to 80°C (-22 to 175°F) (lower temperature on request)
DIF SERIES
Hydraulic Swivel Joints
PORTS
6 to 22
FLUIDS
hydraulic fluid, air
MAXIMUM PRESSURE
420 bar
ROTATION SPEED
0-12 rpm
OPERATING TEMPERATURE
-30 to 80°C (-22 to 175°F) (lower temperature on request)
DI SERIES
Hydraulic Swivel Joints
PORTS
2 to 18
FLUIDS
hydraulic fluid, air
MAXIMUM PRESSURE
420 bar
ROTATION SPEED
0-12 rpm
OPERATING TEMPERATURE
-30 to 80°C (-22 to 175°F) (lower temperature on request)
DA SERIES
Hydraulic Swivel Joints
PORTS
2 to 8
FLUIDS
hydraulic fluid, air
MAXIMUM PRESSURE
420 bar
ROTATION SPEED
0-12 rpm
OPERATING TEMPERATURE
-30 to 80°C (-22 to 175°F) (lower temperature on request)
