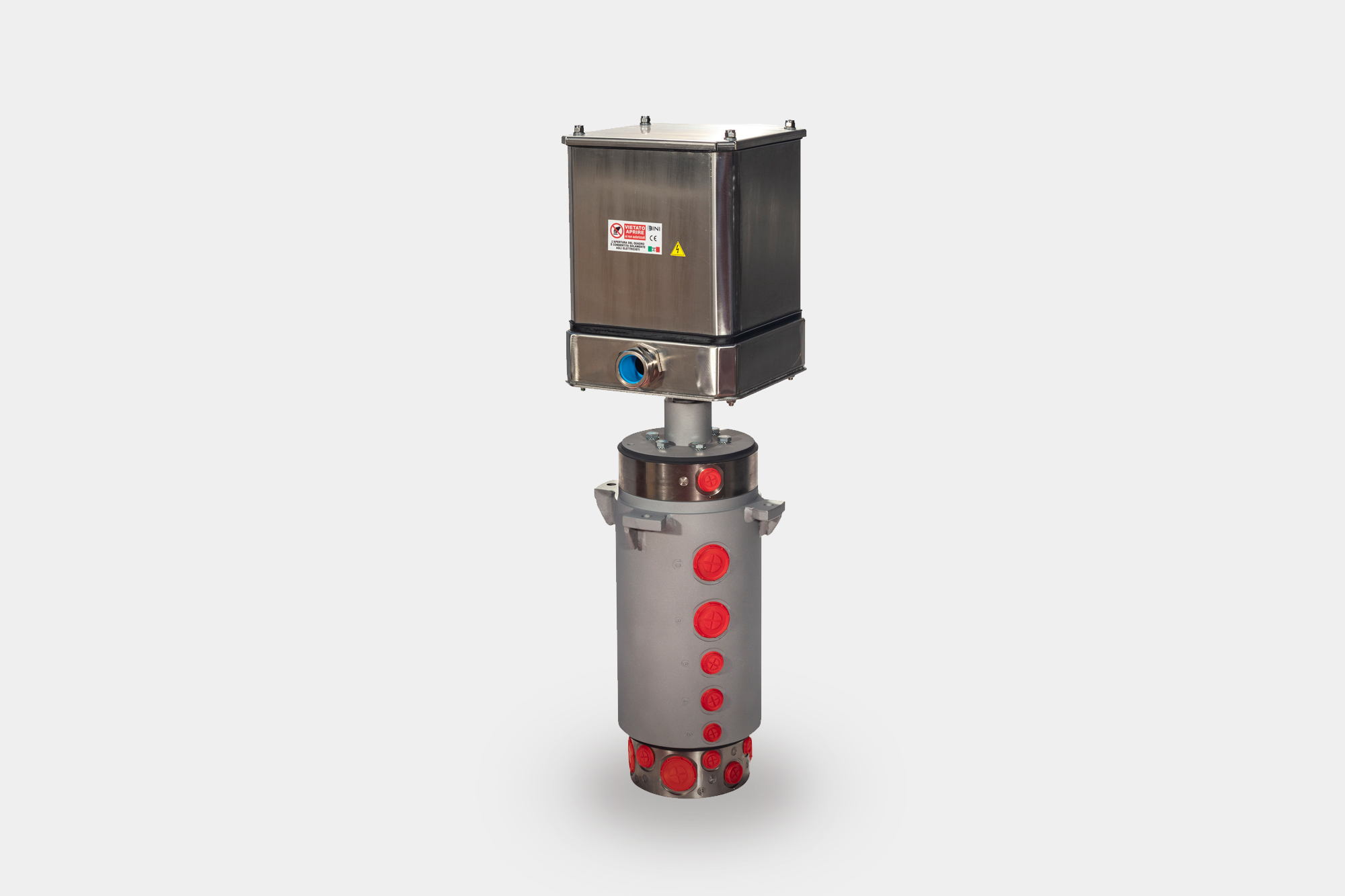

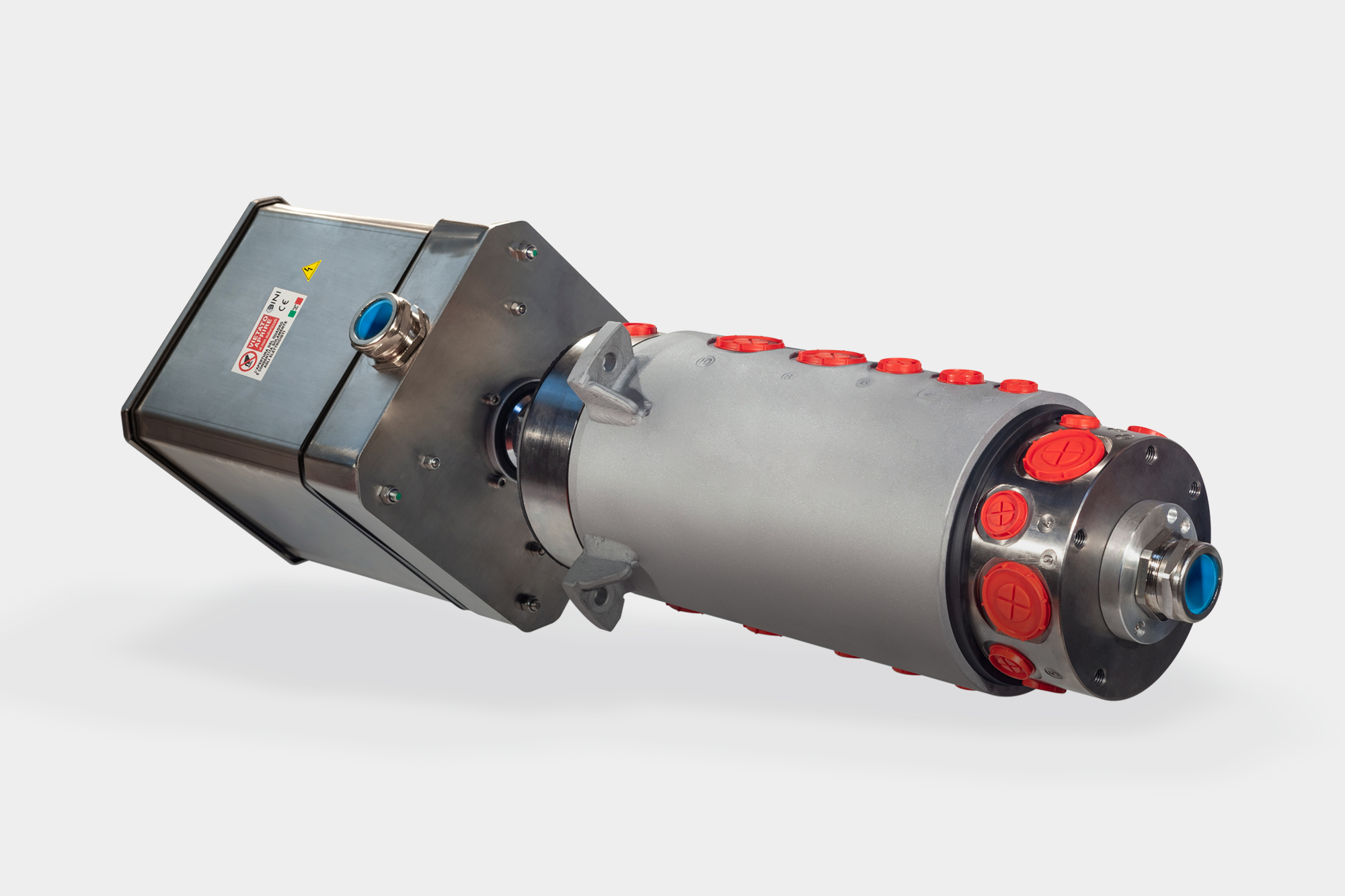

HiPOmaxi SLIP RING

FUNCTIONALITIES

The HiPOmaxi ELECTRICAL SLIP RING ensures electrical continuity of max. 150 contacts between rotating and stationary structures.
HiPOmaxi was designed and developed to meet the most complex needs of rotating machinery builders.
The internal contacts are characterised by ultra low electrical resistance, meaning low heat generation even with high current (max. 600 A).

ADVANTAGES:

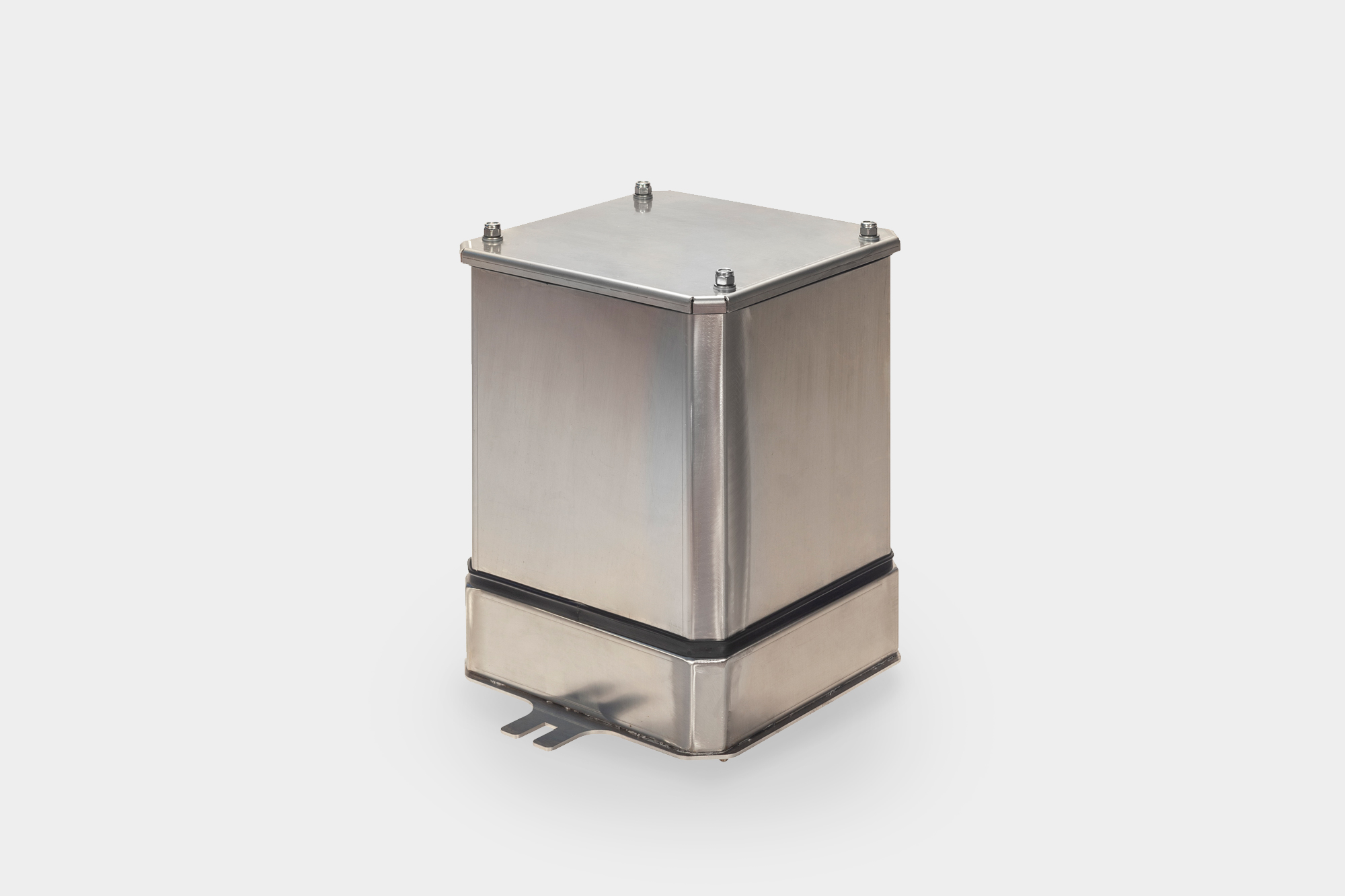

AISI 304/316 stainless steel guard
High corrosion resistance
Dual internal bearing
Ease of inspection and maintenance
Low space requirement
Option for lower junction box

DOWNLOAD THE COMPLETE BROCHURE:

PLEASE FILL OUT THE FORM:

GENERAL TECHNICAL SPECIFICATIONS

ROTATION SPEED
0 – 30 rpm

OPERATING TEMPERATURE
-40 to 60°C (-40 to 140°F)

ELECTRICAL SPECIFICATIONS

MAXIMUM NUMBER OF CONTACTS
150

CURRENT LOAD
10 mA – 600 A

OPERATING VOLTAGE
1000 V AC / 700 V DC

PROTECTION RATING
IP67

APPLICATIONS

Discover the many applications of our HiPOmaxi electrical slip rings

Aerial platforms

BINI products designed for aerial platforms are customarily installed in: articulated aerial platforms, telescopic aerial platforms, spider platforms, hybrid aerial platforms, firefighting platform trucks.

VIEW

Marine and Ports

I distributori rotanti e i collettori elettrici BINI studiati per il settore marino e portuale vengono abitualmente utilizzati su gru portuali, gru marine, avvolgitori motorizzati speciali.

VIEW

Lifting

BINI hydraulic swivel joints for lifting equipment are customarily used in: truck-mounted cranes, telehandlers, crawler cranes, wheeled loaders, rail loaders, swivel pick & carry cranes.

VIEW

Earthmoving

BINI swivel joints designed for application in earthmoving equipment are customarily used in: mini excavators, caterpillar tread excavators, wheeled excavators, graders, spider excavators, hybrid excavators.

VIEW
